2002 Chevy Tracker Fuse Box Diagram

Turn and lane change signals.

2002 chevy tracker fuse box diagram. How do i change ac fuse. Fuse box diagram location and assignment of electrical fuses and relays for chevrolet chevy tracker 1999 2000 2001 2002 2003 2004. 2002 instrument panel fuse block this fuse box is under the left side of the instrument panel. The turn signal has an upward for right and a downward for left position.

Electrical components such as your map light radio heated seats high beams power windows all have fuses and if they suddenly stop working chances are you have a fuse that has blown out. The video above shows how to replace blown fuses in the interior fuse box of your 2000 chevrolet tracker in addition to the fuse panel diagram location. Fuse panel layout diagram parts. 2002 chevy tracker 25l fuse box map.

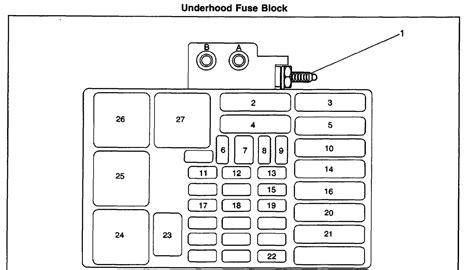

Ok check and see if the 60 amp htr fuse is good in the fuse box if it is then in the junction box check and see if the def 15 amp fuse is goodeither one of those fuses is bad or the blower motor relay is badthe junction box that holds that def fuse is located under the drivers. 2002 chevy tracker ac blower motor not working at any speed. 2002 chevy tracker 20l under hood fuse box diagram. Chevrolet tracker 2002 fuse box diagram.

Fuse blockac fuse horn relay ac compressor relay ac condenser fan relay shift lock control relay. To signal a turn move the lever all the way up or down. These positions allow you to signal a. Tracker 2002 fuse box.

Fuses usage pw power windows dom dome light radio memory tail license plate light clearancemarker lights instrument panel illumination warning tone haz hazard lights turn signal ig o2 sensor heater cruise control ignition. Fuse panel layout diagram parts. 2002 chevy tracker 20l under hood fuse box map. Find answers to your 2002 chevrolet tracker question from certified mechanics and auto experts.

The fuse box is located under the dash on the drivers side on the side. On the 2001 chevy tracker it is a 10amp fuse and it is marked dom. To reset the radio or cd player pull the fuse out with a. Chevrolet tracker 2002 fuse box diagram year of production.
